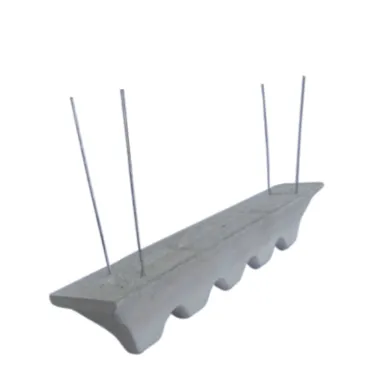

Indented Triangular Surface Bar Ready Wired

This spacer offers minimal contact with the formwork and maximum cover with reinforcement. Also enables excellent flow condition for in-situ concrete. The diagonal groove ensures that the spacer is always attached to the outer reinforcement and prevents twisting or overturning. Minimum Concrete Strength of 50N/mm2. Approved according to DBV specification.

Product Code	Cover (mm)	Length (mm)	Pallet Size (no)
CPS30	30	250	10000
CPS35	35	200	8000
CPS40	40	150	6000
CPS45	45	120	4800
CPS50	50	100	4000
CPS55	55	70	2800
CPS60	60	60	2400
CPS65	65	50	2000
CPS70	70	40	1600
